3.0 inch TFT Screen Time Attendance Terminal, 3,000 Fingerprints Capacity, 100,000 Transaction Capacity

UA300 adopts the brand new firmware and provides an unprecedented user experience. It brings innumerable surprises, including the stunning GUI, rock-solid stability, fast matching speed and expandability. Users can easily manage data by networking UA300 via TCP/IP, USB Host or USB Client. Most importantly, all the functions can still operate in a networking state. UA300 is compatibility with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion. It promotes the fingerprint time & attendance management to the next level. You can get the best of benefits from the UA300.

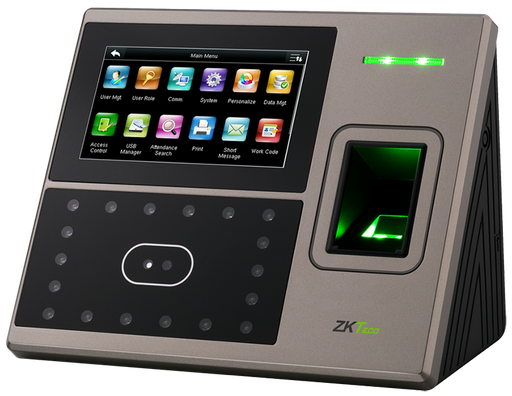

Dual-Mode Biometric Data Collection Terminal

The uFace800 dual-mode, biometric time and attendance terminal includes both a camera for facial recognition and a fingerprint capture device for versatile and secure biometric applications.

Standard Functions
High-resolution infrared camera
Multi-language capable
Fast verification speed in either mode
Battery backup, allowing approximately 4 hours of continuous operation
Flexible firmware allows easily extended functions to customize to specific end user requirements
Single facial template is registered per user
WiFi Standard
Presented photo detection: able to distinguish between live image and photo


Specifications
Display

800 x 480 Pixel, LCD Capacitive Touch Screen
Verification Speed

≤1 sec (typical)
Capacity

ID Cards: 10,000
Transactions: 100,000
Face templates: 1500
Fingerprint templates: 3,000
Fingerprint Sensor

ZK2750P
Communications

Ethernet, Serial RS 232/RS 485, USB (host & client), Wi-Fi
Supported Devices

uFace 800 ID-WiFi: Fingerprint and Standard RFID prox reader
uFace 800 HID-WiFi: Fingerprint and Standard HID prox reader
Power

12V DC, 3A

Optional: 12V POE injector (sold separately)
Optional: 12V Battery Backup (sold separately)
Environment

Operating Temperature: 32° F to 113° F (0° C to 45° C)
Operating Humidity: 5% to 80%
Dimensions

Width: 7.6 in. (19.3 cm)
Height: 6.4 in. (16.5 cm)
Depth: 3.75 in. (9.5 cm)
Weight: 1.75 lbs. (794 g)

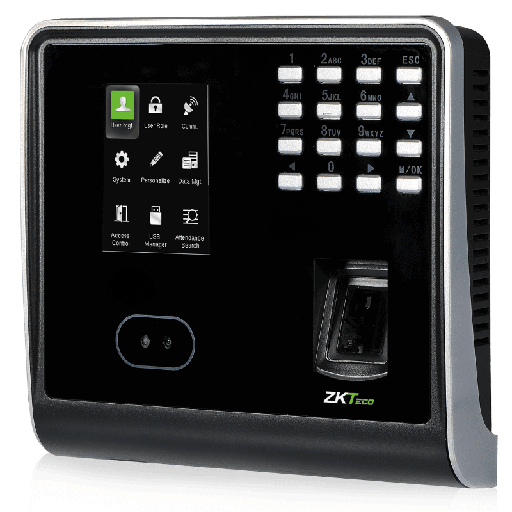

MB1000 is the first ever Time Attendance and Access Control Terminal to be associated with BioID fingerprint reader, face recognition and RFID card functions. With the new BioID fingerprint reader, the operation remains stable under a strong light source and high preciseness of verification of wet and rough fingers. With the latest facial algorithm and the innovative features, MB1000 is bringing you the whole new experience.

Features

Face Capacity - 2,000
Fingerprint Capacity - 3,000
Card Capacity - 3,000
Record Capacity - 100,000
Display - 2.8-inch TFT Screen
Communication - RS232/485, TCP/IP, USB -Host
Standard Functions - Work Code, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch ,Photo ID,
T9 Input, Camera, 9 digit user ID, Built-in Battery, Multiple Verify Mode, External Bell.
Interface for Access Control - 3rd Party Electric Lock, Exit Button, Alarm
Optional Functions - ID / MF cards, WDMS
Power Supply - DC 12V 3A
Verification Speed - ≤1 Sec.

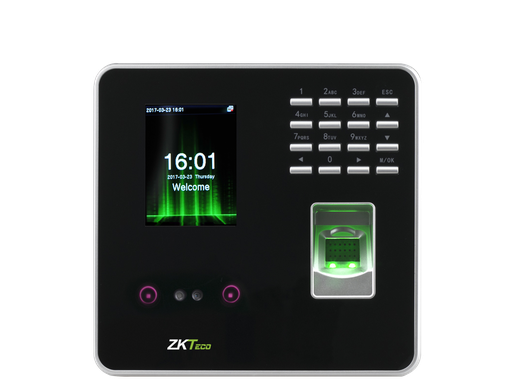

MB20 is Time Attendance and Access Control Terminal to be associated
With ZK fingerprint reader, face recognition and RFID card functions and support multiple hybrid recognition.With latest facial algorithm and the innovation features, MB20 is bringing you the whole new experience.

Overview
Fingerprint Capacity 500
ID Card Capacity 1,000
User 1,000
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication TCP/IP, USB-Host, Wi-Fi(Optional)
Standard Functions Automatic Status Switch, Photo ID
T9 Input, Camera, 9 digit user ID, Built-in Battery, Multiple Verify Mode, External Bell
Optional Functions ZigBee,SSR
Power Supply DC 12V 1.5A
Operating Temp 0 °C – 45 °C
Operating Humidity 20%-80%
